3D Scanning & Measurement


CAD / CAM Services provides expert 3D Scanning for Engineering, when you need a fast and accurate method of putting physical measurements of an object into your CAD system,


The 3D scanned data can be represented by a scale digital model or a 3D graphics rendering. The scanned data provides all of the physical dimensions of the object, such as length, width, height, volume, feature size, feature location, and surface area.

This 3D scanned data acts as a bridge between the actual physical object and manufacturing. The data from the 3D scan can be converted into CAD / CAM data used by CNC machines.



Ego Manufacturing Group possesses a potent combination of a highly trained mechanical engineering team, coupled with robust infrastructural capabilities. Our scanning and digitizing services include:

  Ø3D scanning and digitizing services

  ØWhite light scanning

  ØLaser measurement

  Ø3D inspection services

  ØScan data testing and analysis

  ØGeometric inspection

  ØClass A surfacing services



Our reverse engineering services help you assimilate key data of how a physical product is manufactured. Laser scan or laser measurement is often used for this purpose. Our 3D scanning and digitizing services has helped companies analyze their competitors’ products and thus develop a better engineered product for your market. From simple 3D scans to applying reverse engineering techniques on complex machinery, we have the experience and expertise in working with a variety of industrial assignments.


We can help create a drawing /3d model for any engineering parts for which a drawing or digital media doesn’t exist for reverse engineering. Our 3d scanning technique is fast, accurate and gives you digital models in a very short period thereby saving time using traditional measuring and drafting techniques.


Any type of complex shapes can be scanned and digitized. Our digital models can be directly used in Solidworks, Inventor, Pro Engineering, Catia, Rhinoceros and most popular 3D modelling software available in the market.

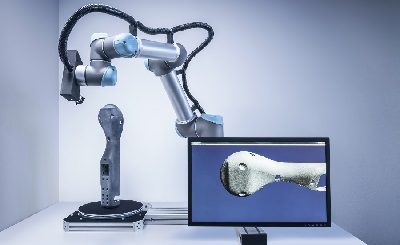

Our 3D Scanners

  1. ØArtec Eva

  2. ØFaro Scan Arm



Our 3D scanning processing software

  1. ØPolyworks

  2. ØArtec Studio

  3. ØGeomagic
